Build system#

The build system is a fundamental tool for packaging Python libraries. It generates distribution files that can be shared with users and developers.

Artifacts#

The build system allows maintainers to generate artifacts for their Python libraries. Here, artifacts refers to both wheel and source files:

  • Wheel files have a WHL extension.

  • Source files have a TAR.GZ or ZIP extension.

These are the files that you upload to PyPI when releasing a new version of a PyAnsys project.

Warning

Not all files are included by default in the source distribution. A MANIFEST.in file is required at the root of the project to specify additional files. For more information, see Controlling files in the distribution in the Setuptools documentation.

The interaction between the maintainer and the build system is performed using a build system tool. This tool provides both a frontend and a backend. The maintainers trigger the frontend, which then calls the backend to read the project directory and generate the artifacts, as Fig. 11 shows.

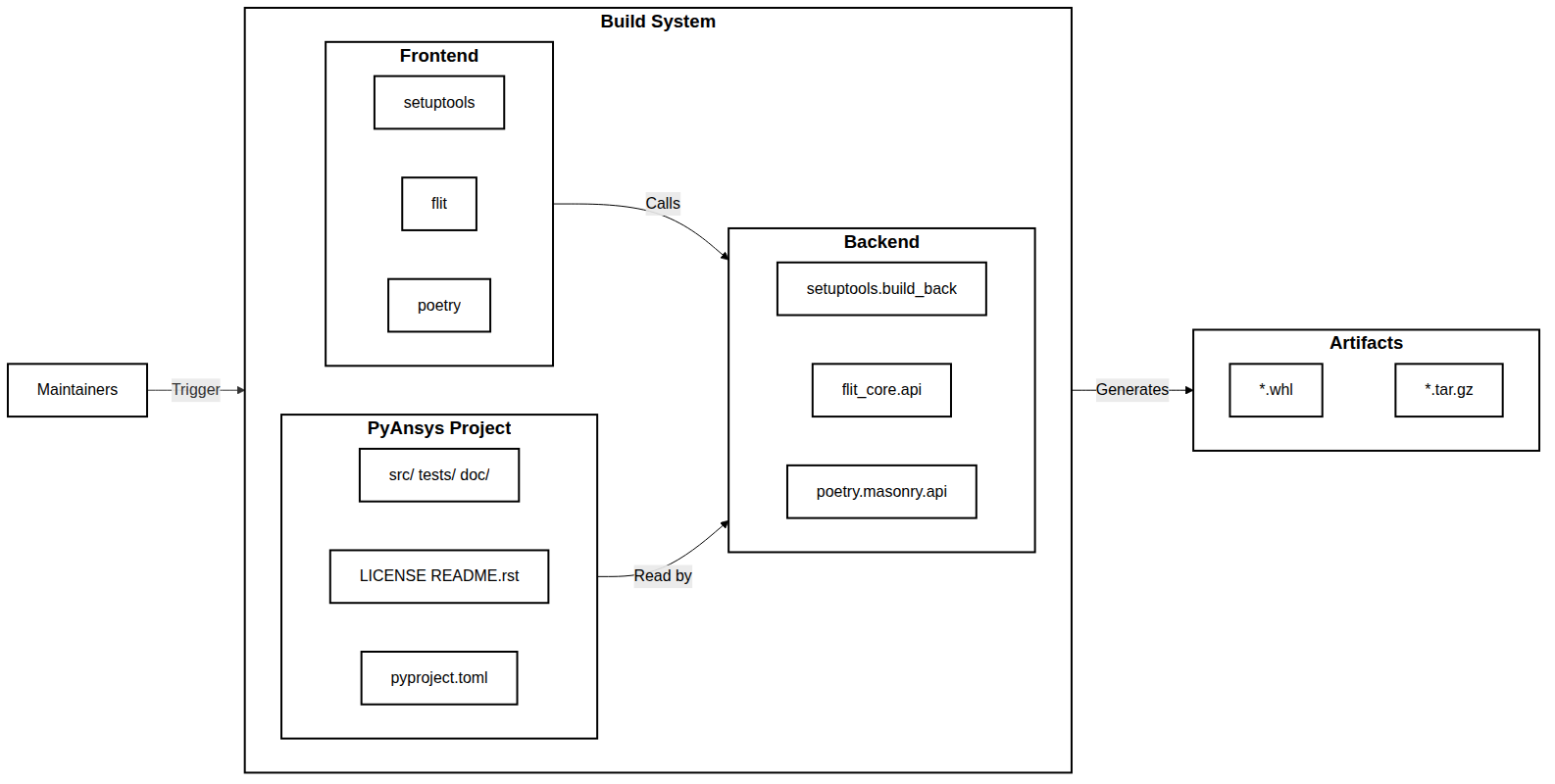

Maintainers use the build system to create artifacts.

Fig. 11 Maintainers use the build system to create artifacts.#

PEP 517 and PEP 518#

For a long time, the setup.py file was the only way of specifying the project structure, metadata, and installation workflow that pip was to follow. However, having to execute a Python file when installing a Python package introduced the following problems:

  • It was not possible to know which dependencies required the setup.py file to be properly executed.

  • The default Python package installer, pip, expected Setuptools to be the default build system tool, excluding others like Flit and Poetry.

These problems led to the acceptance of PEP 517 and PEP 518.

PEP 517#

PEP 517 allows Python developers to specify the build-backend tool for generating artifacts. Fig. 11 shows the most popular backends:

  • Setuptools, while very popular, lacks the ability to declare build-time dependencies and is difficult to extend.

  • Flit is a lightweight build system tool for Python.

  • Poetry focuses on dependency management and environment isolation.

PEP 517 introduced the build-backend key inside the [build-system] table in the pyproject.toml file.

PEP 518#

In addition to the setup.py file, PEP 518 includes a project file named pyproject.toml. Its main goal is to specify build-time dependencies. However, some build-system tools like Flit or Poetry are able to specify all project metadata inside the pyproject.toml file and eliminate the need to use the setup.py file.

To specify the build-time requirements, the [build-system] table must be declared in the pyproject.toml file. Within it, the requires key is assigned to a list of strings, which are the build-time requirements.

The combination of PEP 517 and PEP 518 leads to the following syntax in a pyproject.toml file:

[build-system]
requires = ["flit"] # Defined by PEP 518
build-backend = "flit_core.api" # Defined by PEP 517

Build-backend tools#

This section lists some of the most popular build systems in the Python ecosystem. Although all of them achieve the same goal, there are a few differences regarding their capabilities and the way of specifying project metadata.

Setuptools#

Setuptools has been a part of the Python ecosystem for a long time. Unless you require high control over your project’s installation steps, you should use Flit or Poetry.

If you do not need a dynamic installation process, you can consider using a setup.cfg file. However, the setup.py file is still required. The setup.cfg file should have a call to the setup function to act as the entry point of the build backend system.

All of these setuptools metadata fields are valid and must be specified either in the setup.py or setup.cfg file.

Flit#

Flit is a modern and lightweight build system that requires developers to manage virtual environments on their own. Developers must:

  • Create a virtual environment and activate it.

  • Install the package in editable mode.

Flit is the default tool for creating a new PyAnsys project when using the Ansys templates.

The [project] section specifies the project’s metadata and required dependencies. For more information, see flit pyproject.toml guidelines.

Poetry#

Poetry has a poetry.lock file, which provides strong dependency pinning. When installing a package, Poetry creates a virtual environment, thus ensuring an isolated package development environment.

Nevertheless, it is possible to make Poetry ignore the poetry.lock file with this command:

poetry config virtualenvs.create false --local

Using Poetry is popular because it offers these features:

  • Supports pinning dependency versions using a poetry.lock file that can be used for testing and CI

  • Allows downstream packages to still consume a loose dependency specification

  • Integrates with dependabot to update the pinned version

The [tool.poetry] section contains metadata and defines project dependencies. For more information, see The pyproject.toml file in the Poetry documentation.
